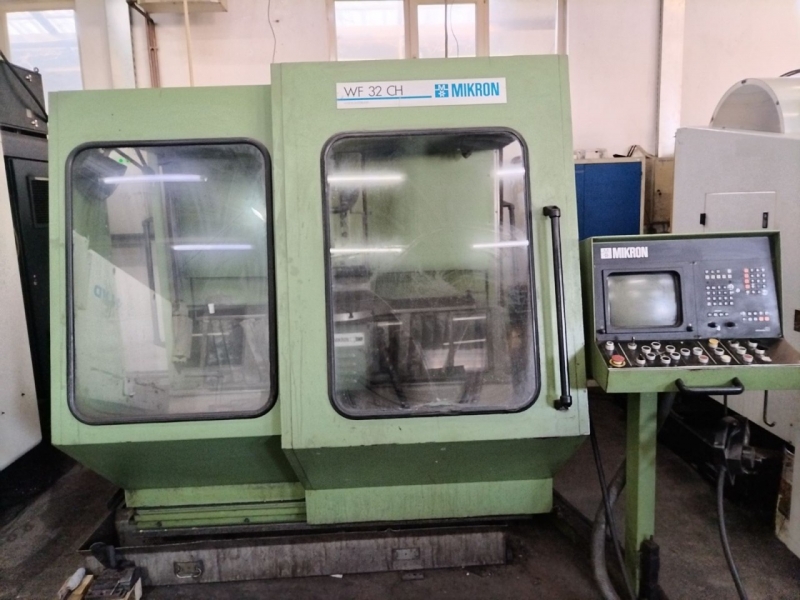

CNC universal milling machine

Mikron WF 31 CH

Basic information:

Manufacturer: Mikron AG, Switzerland

Model: WF 32 CH

Type: CNC universal milling machine

Controller: Heidenhain TNC 355

Configuration: 4 axes (X, Y, Z, C)

Year of manufacture: 1990

Working strokes of axes:

X axis (longitudinal): 560mm

Y axis (transverse): 500mm

Z axis (vertical): 400 mm

C axis (rotational axis, rotary table): 360°

Workbench:

Rotary table: fi 600mm

Spindle (main):

Cone: SK 40 (DIN 69871 / ISO 40)

Revolutions: 40 - 4000 rpm

Power: 4 – 5.5 kW

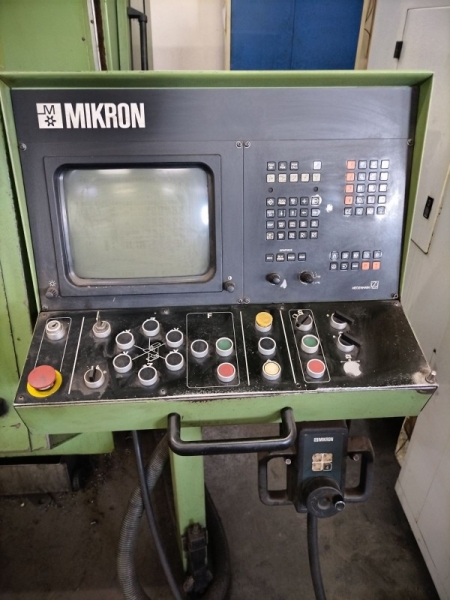

CNC system:

Controller: Heidenhain TNC 355

Supported axes: 4 (X, Y, Z, C)

Programming: ISO G-code + Heidenhain dialog

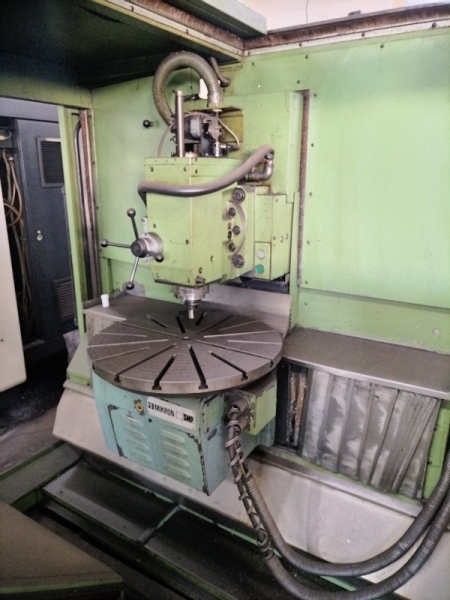

Machine head:

Universal head, rotatable ±90° (horizontal and vertical processing)

Allows milling at an angle + 4-axis rotation of the piece

The machine is not in operation, required parameters and small repair on the z-axis motor
