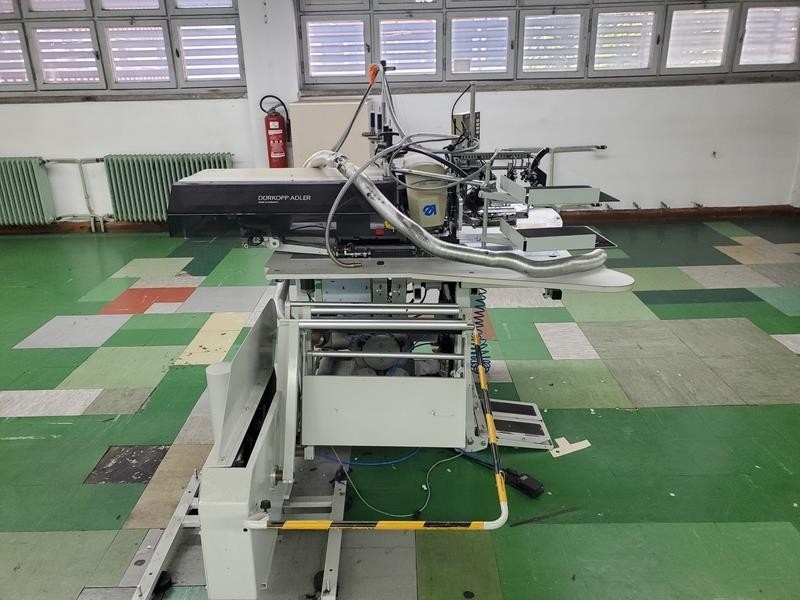

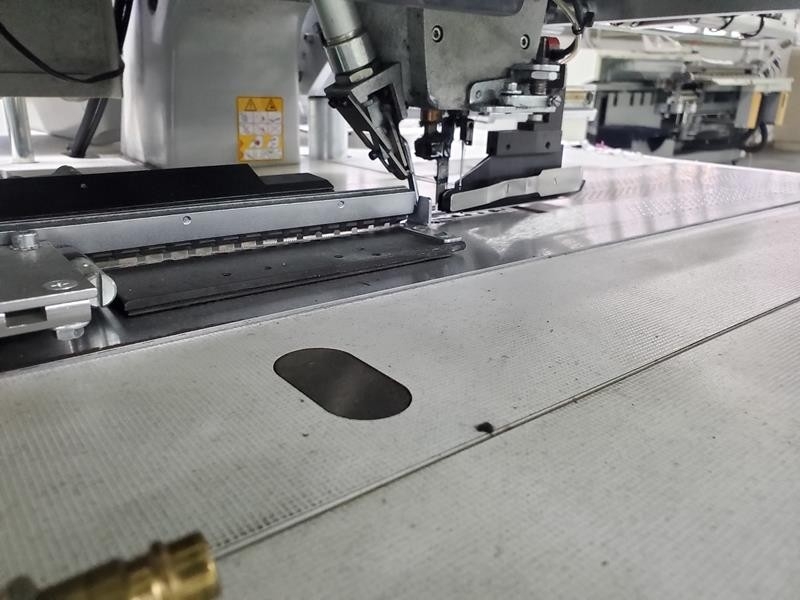

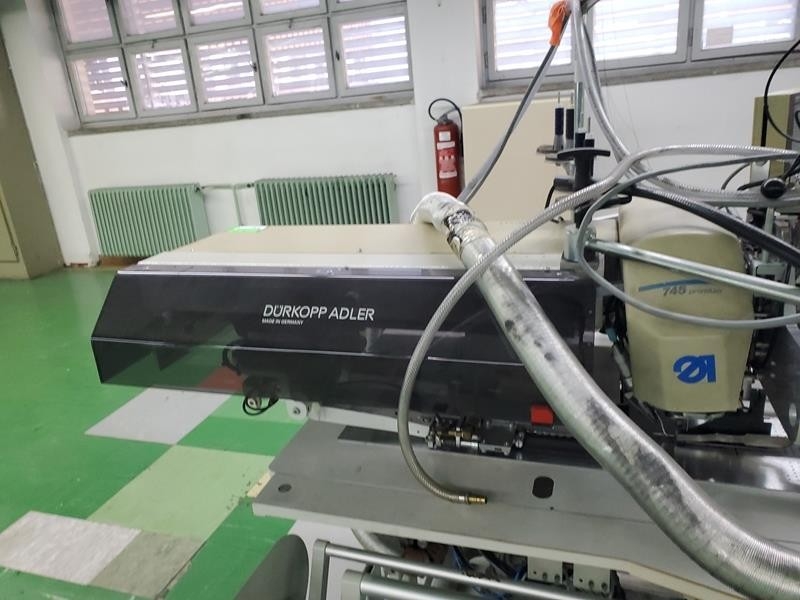

Durkopp Adler Sewing machine

Machine head: Class 0246 992004;

Needle system: 2134-85;

Needle distance: 10, 12, 14, 16, 20, 24, 26, 30 mm;

Needle size: Nm 80 to Nm110;

Stitch type: Twin needle lockstitch ;

Speed: min. 2000 rpm max. 3000 rpm ;

Stitch length: min. 2.0 to 3.0 mm;

Number of stitches/condensed stitches: 1 - 10 stitches;

Number of stitches/bartack stitch: 0 - 5 stitches ;

Stitch length condensed stitches / bartack: 0.5 - 3.0 mm;

Pocket length: max. 220 mm Seam offset: max. + /- 13 mm ;

Operating pressure: 6 bar;

Air consumption: approx. 6 NL per work cycle;

 Rated voltage: 3 x 230 / 400 V / 50/60 Hz;

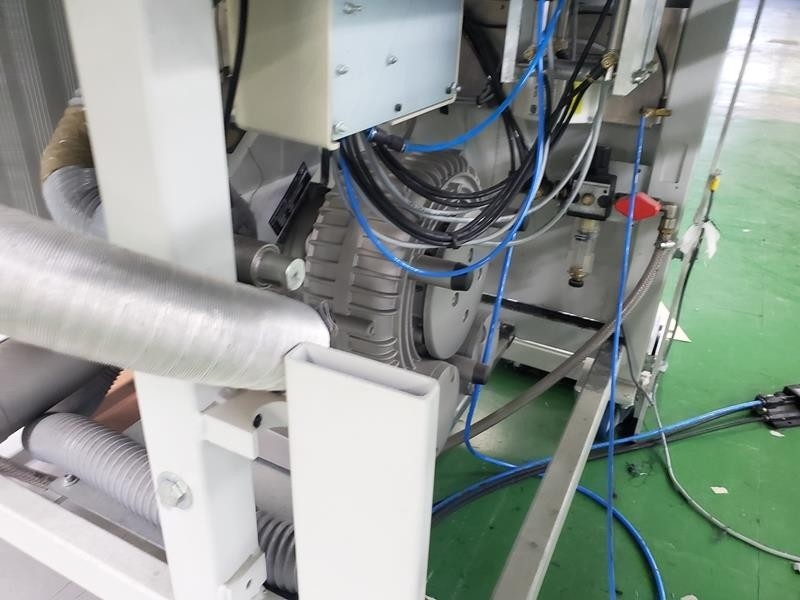

 Rated load: Machine with vacuum blower 0,8 KW ;

Machine without vacuum blower 0,5 KW;

Dimensions: 1540 x 925 x 1200 mm (L x W x H);

Working height: 790...1100 mm (upper edge of table top) ;

Weight: 280 kg
